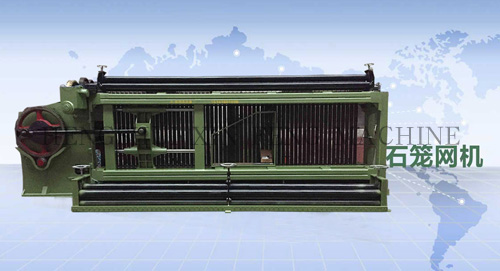

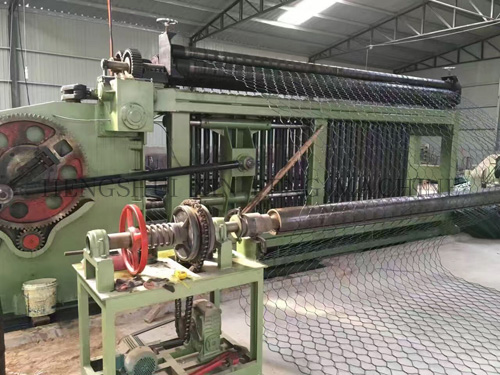

Introduction Gabion wire mesh machine is also called heavy- duty hexagonal wire mesh machine.
It adopt PLC touch screen frequency control, which has the function of frequency control of motor speed according to different of wire diameter ,has buffer function when speed increase or decrese in very short time, can count output every year,can save sbout 30% energy.
The product purpose,
with its good corrosion resistance and oxidation resistance, serves well as strengthen, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries.
Prameters
Type |
Mesh opening |
Max Width |
Wire Diameter |
Strand |
Speed |
Power |
Theory speed |
XFH 23-60-2 |
60*80 mm |
2300 mm |
1.6-4 mm |
3 |
25 r/min |
11 kw |
165 m/h |
XFH 23-80-2 |
80*100 mm |
2300 mm |
1.6-4 mm |
3 |
25 r/min |
11 kw |
195 m/h |
XFH 23-100-2 |
100*120 mm |
2300 mm |
1.6-4 mm |
3 |
25 r/min |
11 kw |
225 m/h |
XFH -23-120-2 |
120*150 mm |
2300 mm |
1.6-4mm |
3 |
20 r/min |
11 kw |
225 m/h |
XFH 33-60-2 |
60*80 mm |
3300 mm |
1.6-4mm |
3 |
25 r/min |
15 kw |
165 m/h |
XFH 33-80-2 |
80*100 mm |
3300 mm |
1.6-4 mm |
3 |
25 r/min |
15 kw |
195 m/h |
XFH 33-100-2 |
100*120 mm |
3300 mm |
1.6-4 |
3 |
25 r/min |
15 kw |
225 m/h |
XFH 33-120-2 |
120*150 mm |
3300 mm |
1.6-4 |
3 |
20 r/min |
15 kw |
225 m/h |
XFH 43-60-2 |
60*80 mm |
4300 mm |
1.6-4 |
3 |
25 r/min |
22 kw |
165 m/h |
XFH 43-80-2 |
80*100 mm |
4300 mm |
1.6-4 |
3 |
25 r/min |
22 kw |
195 m/h |
XFH 43-100-2 |
100*120 mm |
4300 mm |
1.6-4 |
3 |
25 r/min |
22 kw |
225 m/h |
XFH 43-120-2 |
120*150 mm |
4300 mm |
1.6-4 |
3 |
20 r/min |
22 kw |
225 m/h |
