Location: Home > products >Automatic Gabion Mesh Machine

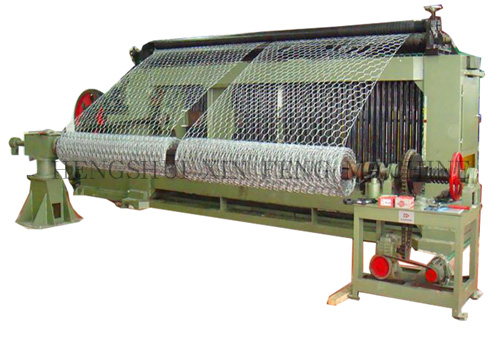

Automatic Gabion Mesh Machine;Gabion machine; gabion mesh making machine;hexagonal wire netting machine Automatic Gabion Mesh Machine Production Line;

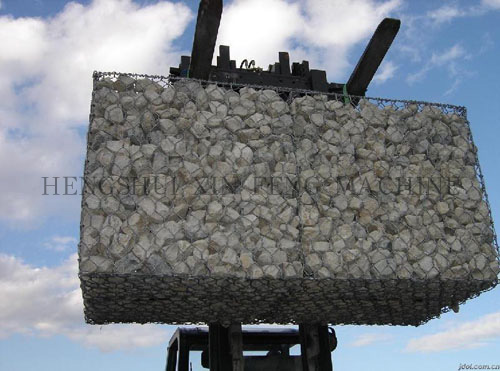

XFH-2 series hengshui xinfeng gabion mesh machines (hexagonal wire netting machine) have been designed to make gabion mesh (hexagonal mesh) of various widths and mesh sizes. For high corrosion resistance, zinc and PVC, galfan coated wire is available. The Gabion Mesh Machine can provide gabion mesh products for various kinds of construction items. The gabion products are commonly used to drain water course to protect and support roads, railroads, airports and residential areas, for coastal protection, build retaining walls, river bank protections, weirs, gabion boxes mattresses, etc.

Type

Mesh opening

Max Width

Wire Diameter

Strand

Speed

Power

Theory speed

XFH 23-60-2

60*80 mm

2300 mm

1.6-4 mm

3

25 r/min

11 kw

165 m/h

XFH 23-80-2

80*100 mm

2300 mm

1.6-4 mm

3

25 r/min

11 kw

195 m/h

XFH 23-100-2

100*120 mm

2300 mm

1.6-4 mm

3

25 r/min

11 kw

225 m/h

XFH -23-120-2

120*150 mm

2300 mm

1.6-4mm

3

20 r/min

11 kw

225 m/h

XFH 33-60-2

60*80 mm

3300 mm

1.6-4mm

3

25 r/min

15 kw

165 m/h

XFH 33-80-2

80*100 mm

3300 mm

1.6-4 mm

3

25 r/min

15 kw

195 m/h

XFH 33-100-2

100*120 mm

3300 mm

1.6-4

3

25 r/min

15 kw

225 m/h

XFH 33-120-2

120*150 mm

3300 mm

1.6-4

3

20 r/min

15 kw

225 m/h

XFH 43-60-2

60*80 mm

4300 mm

1.6-4

3

25 r/min

22 kw

165 m/h

XFH 43-80-2

80*100 mm

4300 mm

1.6-4

3

25 r/min

22 kw

195 m/h

XFH 43-100-2

100*120 mm

4300 mm

1.6-4

3

25 r/min

22 kw

225 m/h

XFH 43-120-2

120*150 mm

4300 mm

1.6-4

3

20 r/min

22 kw

225 m/h
