Location: Home > products > Automatic Gabion Mesh Machine Production Line

Automatic Gabion Mesh Machine Production Line;Gabion Mesh Machine Production Line;Gabion Mesh making Machine Line

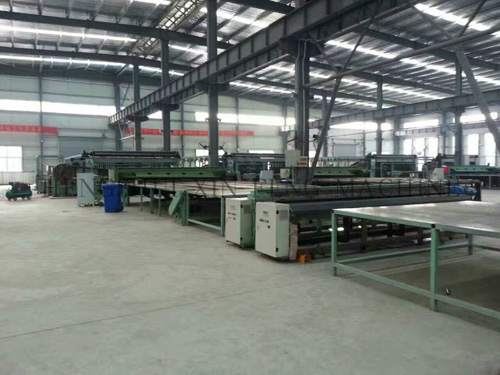

Automatic Gabion Mesh Machine Production Line001

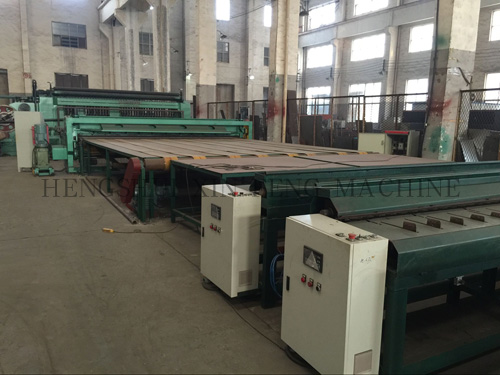

      Automatic Gabion Mesh Machine Production Line002

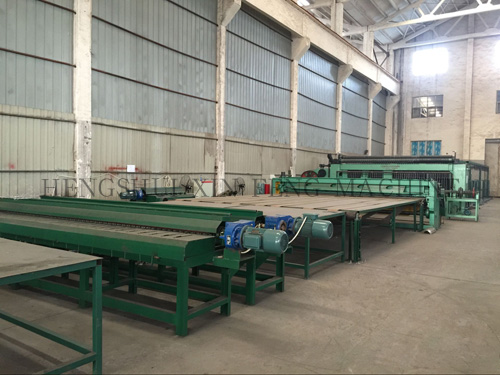

         Automatic Gabion Mesh Machine Production Line03

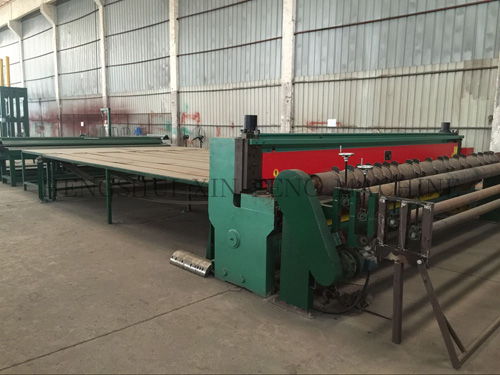

    Netting Sheet Straightening and Cutting Machine1

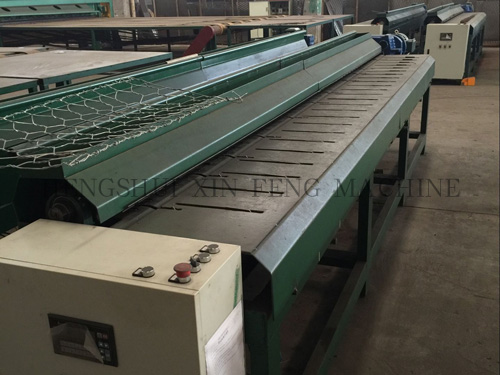

     Border Reinforcement & Netting End Winding-up Machine

our Automatic Gabion Mesh Machine Production Line. It could from the weave gabion the mesh-cutting the mesh-convey the mesh-Border Reinforcement & Netting End Winding-up of the mesh 100% automatically.
That could improve the production efficiency and save the production cost. And we would offer our high quality machine and the best service for you.


Type

Mesh opening

Max Width

Wire Diameter

Strand

Speed

Power

Theory speed

XFH 23-60-2

60*80 mm

2300 mm

1.6-4 mm

3

25 r/min

11 kw

165 m/h

XFH 23-80-2

80*100 mm

2300 mm

1.6-4 mm

3

25 r/min

11 kw

195 m/h

XFH 23-100-2

100*120 mm

2300 mm

1.6-4 mm

3

25 r/min

11 kw

225 m/h

XFH -23-120-2

120*150 mm

2300 mm

1.6-4mm

3

20 r/min

11 kw

225 m/h

XFH 33-60-2

60*80 mm

3300 mm

1.6-4mm

3

25 r/min

15 kw

165 m/h

XFH 33-80-2

80*100 mm

3300 mm

1.6-4 mm

3

25 r/min

15 kw

195 m/h

XFH 33-100-2

100*120 mm

3300 mm

1.6-4

3

25 r/min

15 kw

225 m/h

XFH 33-120-2

120*150 mm

3300 mm

1.6-4

3

20 r/min

15 kw

225 m/h

XFH 43-60-2

60*80 mm

4300 mm

1.6-4

3

25 r/min

22 kw

165 m/h

XFH 43-80-2

80*100 mm

4300 mm

1.6-4

3

25 r/min

22 kw

195 m/h

XFH 43-100-2

100*120 mm

4300 mm

1.6-4

3

25 r/min

22 kw

225 m/h

XFH 43-120-2

120*150 mm

4300 mm

1.6-4

3

20 r/min

22 kw

225 m/h
