1：Automatic Gabion Mesh Machine;Gabion machine; gabion mesh making machine; hexagonal wire netting machine Automatic Gabion Mesh Machine Production Line;

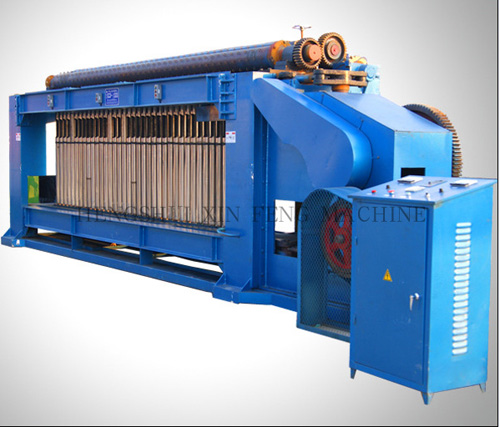

1.the XFH-2 series gabion mesh machines have been designed to make gabion mesh of various widths and
mesh sizes
2.The gabion mesh machine, is the professional equipment that produces hexagonal wire netting
descrition:
the XFH-2 series gabion mesh machines have been designed to make gabion mesh of various widths
and mesh sizes,
we can produce the machine as your size. please note: all machines which showed in globalmarket
. we supply advanced machine to oversea clients directly
only. if you want to buy advanced machine and want to get best after sales service, please contact
me directly.
Applications:
The gabion mesh machine, is the professional equipment that produces hexagonal wire netting, its product
extensively used
for petroleum, building, farming and chemical engineering industry, keep warm piping and other piping,
be also used for rounding column, residence and park greening safeguard etc..
Gabion mesh is still more available to manufacture the gabion mesh box and extensively used for safeguard
and backing sea dike, hillside, road , bridge and reservoir and others, it is the best material of the
flood control at the same time.
|
Type |
Mesh opening |
Max Width |
Wire Diameter |
Strand |
Speed |
Power |
Theory speed |
XFH 23-60-2 |
60*80 mm |
2300 mm |
1.6-4 mm |
3 |
25 r/min |
11 kw |
165 m/h |
XFH 23-80-2 |
80*100 mm |
2300 mm |
1.6-4 mm |
3 |
25 r/min |
11 kw |
195 m/h |
XFH 23-100-2 |
100*120 mm |
2300 mm |
1.6-4 mm |
3 |
25 r/min |
11 kw |
225 m/h |
XFH -23-120-2 |
120*150 mm |
2300 mm |
1.6-4mm |
3 |
20 r/min |
11 kw |
225 m/h |
XFH 33-60-2 |
60*80 mm |
3300 mm |
1.6-4mm |
3 |
25 r/min |
15 kw |
165 m/h |
XFH 33-80-2 |
80*100 mm |
3300 mm |
1.6-4 mm |
3 |
25 r/min |
15 kw |
195 m/h |
XFH 33-100-2 |
100*120 mm |
3300 mm |
1.6-4 |
3 |
25 r/min |
15 kw |
225 m/h |
XFH 33-120-2 |
120*150 mm |
3300 mm |
1.6-4 |
3 |
20 r/min |
15 kw |
225 m/h |
XFH 43-60-2 |
60*80 mm |
4300 mm |
1.6-4 |
3 |
25 r/min |
22 kw |
165 m/h |
XFH 43-80-2 |
80*100 mm |
4300 mm |
1.6-4 |
3 |
25 r/min |
22 kw |
195 m/h |
XFH 43-100-2 |
100*120 mm |
4300 mm |
1.6-4 |
3 |
25 r/min |
22 kw |
225 m/h |
XFH 43-120-2 |
120*150 mm |
4300 mm |
1.6-4 |
3 |
20 r/min |
22 kw |
225 m/h |
